    IMD-M09F

    goods_63acecbf12efd

    FEATURES

                ①Integrated Matrix Device (IMD) solution, pixel pitch 0.9375, flip chip design and energy saving.

                ②Integrated Matrix Device (IMD) solution, 8 pins design, solve the problems of soldering strength and crash.

                ③Black matt finish encapsulation, no specular reflection, higher brightness and contrast.

                ④Better and stronger reliability for weather.

                ⑤Achieve to the seamless combination, no modular color difference in whole screen, 100% tested and binning, better color consistency.

            PRODUCT PARAMETERS

                            Product Name

                        Color                     IF(mA)
    TEST
                        λd(nm)
    Typ
                        Iv(mcd)
    Typ
                        Vf(V)
    Typ
                        View angle
    (deg.)

                            IMD-M09F
    1.6×1.6×0.67

                        5                     620                     40                     1.9                     120
                        2                     535                     40                     2.5                     120
                        2                     464                     8                     2.6                     120

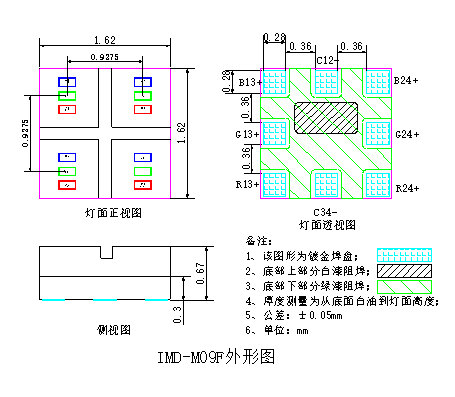

        DIMENSIONS/UNIT(mm)
