Module 2050 (Customization)

Features:

• High thermal conductivity ceramic body UV PKG
• Low thermal resistance
• 365-405 nm available for curing
• 0.2-1W

PRODUCT PARAMETERS：

Product	λp(nm)	IF(mA) TEST	Φe(mW)	VF (V) Typ.
UVMZ2050UV	395-405	3500	48000	28.0
	385	3500	44000	30.0
	375	2500	28000	32.0
	365	2500	25000	32.0

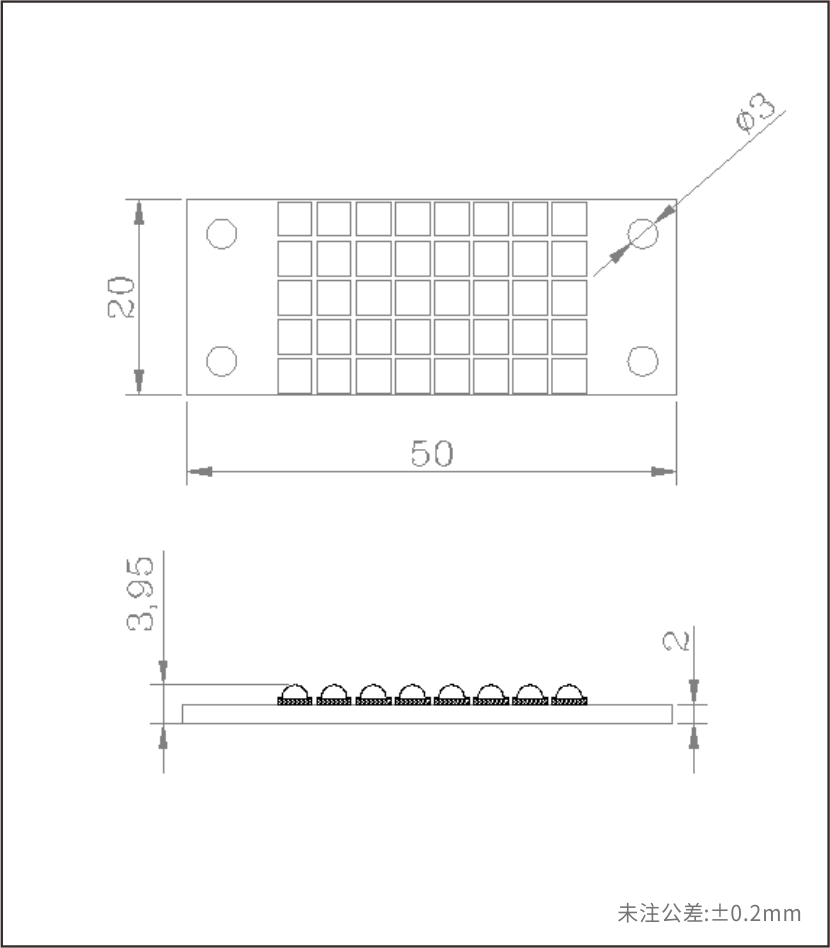

DIMENSIONS/UNIT(mm)
