Grow-light P3528 Series

Grow-light TOP LED

FEATURES:

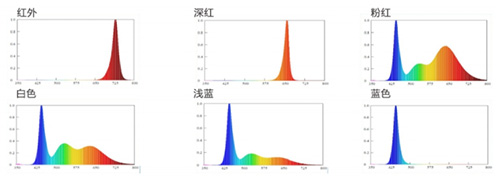

· White series:uniform wavelength, helpful in growing of leafy vegetable
· Red series:610-720nm;helpful in blossoming and fruiting,controlling the flower season
· Blue,400-510nm   contribute to promote growth of leaves,synthesis of protein and fruiting by photosynthesis.
· Rated power:0.2W

ABSOLUTE MAXIMUM RATINGS:

Rated power Color Part number λp(n m ) I F( mA)
TEST
Po(mW)
Typ.
VF( V)
Typ.
0.2W infrared FM- P3528I RS- 730U 730 60 70 2.0
crimson FM- P3528HRS- 660U
660 60
70
2.0
blue FM- P3528BS- 450Q
450 60
90 3.2
pink FM-P3528WPS-450Q
( 0. 351, 0. 274)
60
90
3.2
Cambridge blue FM- P3528WBS- 450Q
( 0. 25, 0. 213)
60
90
3.2
white FM- P3528WNS- 450Q
( 0. 306, 0. 29)
60
90
3.2

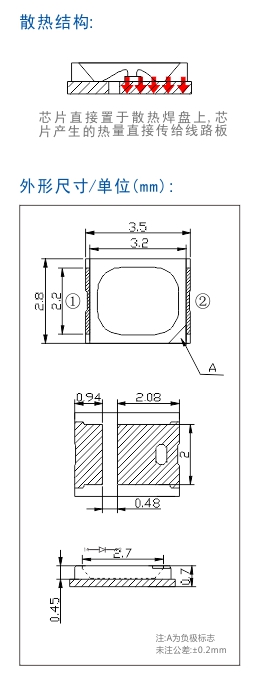

DIMENSIONS/UNIT(mm):
