T5050 Series

Cost-effective TOP white LED

FEATURES:

• Widely used in various products with general dimension
• High brightness，reliable performance and cost-effective.

• Excellent light uniformity，widely used in flexible strip，light source module etc.
• Rated power：0.2W

ABSOLUTE MAXIMUM RATINGS:

Parameter	Symbol	Rating
Forward Current	IF	3*25mA
Pulse Forwards Current*²	IFP	3*100mA
Reverse Voltage	VR	5V
Working Temperature	TOPR	-30~+85℃
Storage Temperature	TSTG	-40~+100℃

PRODUCT PARAMETERS/TA=25℃:

Color	Part number	Color temp（K）	CRI Ra Min	I F( mA) TEST	Φv（l m） Typ.	VF( V) Typ.	I_R( µA)Max*¹
Natural white	FM-T5050WNS-460R	5600-6500	70	60	21	3.2	10
Neutral white	FM-T5050WDS-460R-R70	3700-4200	70	60	21	3.2	10
Warm white	FM-T5050WLS-460R-R70	2800-3200	70	60	20	3.2	10

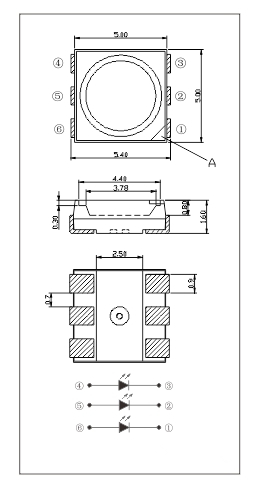

DIMENSIONS/UNIT(mm):
