    3014 series

    Small size High Luminous Efficacy

    FEATURES:

    • Thin encapsulation with heat sink
    • Applicable to LED bulb，LED tube，LED panel etc. cost-effective
    • Rated power：0.1W


    ABSOLUTE MAXIMUM RATINGS:

    Parameter Symbol Rating
    Forward Current IF 35mA
    Pulse Forwards Current*²
    		 IFP 100mA
    Reverse Voltage
    		 VR

    5V

    Working Temperature
    		 TOPR
    		 -30~+85℃
    Storage Temperature
    		 TSTG
    		 -40~+100℃


    PRODUCT PARAMETERS/TA=25℃:

    Color Part number Color Temp（K） CRI Ra Min I F( mA)
    TEST
    		 Φv（l m）
    Typ.
    		 VF( V)
    Typ.
    		 I R( µA)
    Max*1
    Natural white FM-3014WNS-460T-R8 5600-6500 80 30 12 3.2 10
    Neutral white
    		 FM-3014WDS-460R-R70 3700-4200 70 30 11 3.2 10
    FM-3014WDS-460T-R80
    		 3700-4200
    		 80 30
    		 12 3.2
    		 10
    Warm white
    		 FM-3014WLS-460R-R70
    		 2800-3200
    		 70 30
    		 10 3.2
    		 10
    FM-3014WLS-460T-R80
    		 2800-3200
    		 80
    		 30
    		 10 3.2 10

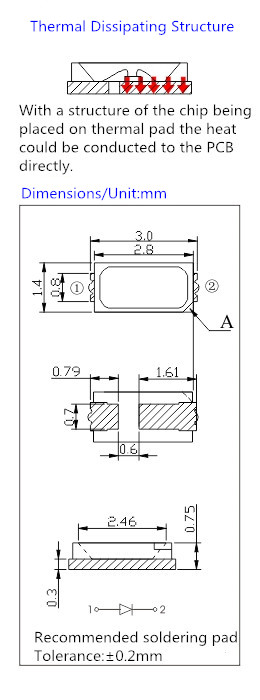

    DIMENSIONS/UNIT(mm):
