VP3030 Series

Small High Pressure High Luminous Efficacy

FEATURES:

• 15V drive，low current，high power conversion efficiency
• Thin encapsulation with heat sink，efficient heat dissipation
• Applicable to LED bulb，downlights，module etc. cost-effective
• Rated power：1W

ABSOLUTE MAXIMUM RATINGS:

Parameter Symbol Rating
Forward Current IF 75mA
Pulse Forwards Current*²
 IFP 200mA
Reverse Voltage
 VR
 25V
Working Temperature
 TOPR
 -30~+85℃
Storage Temperature
 TSTG
 -40~+100℃


PRODUCT PARAMETERS/TA=25℃:

Color Part number Color Temp（K） CRI Ra Min I F( mA)
TEST
 Φv（l m）
Typ.
 VF( V)
Typ.
Natural white FM-VP3030WNS-460Q-R80 5600-6500 80 60 105 16.0
Neutral white
 FM-VP3030WDS-460Q-R80 3700-4200 80 60 105 16.0
Warm white
 FM-VP3030WLS-460Q-R80
 2800-3200
 80
 60
 100
 16.0

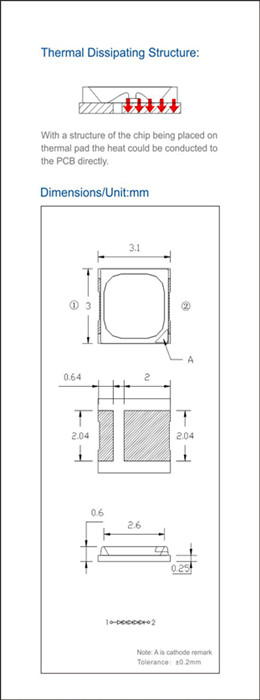

DIMENSIONS/UNIT(mm):
