SP3528 Series

Small High Pressure High Luminous Efficacy

FEATURES:

• 18V drive，low current，high power conversion efficiency
• Thin encapsulation with heat sink，efficient heat dissipation
• Applicable to LED bulb，downlights，module etc. cost-effective
• Rated power：0.6W

ABSOLUTE MAXIMUM RATINGS:

Parameter Symbol Rating
Forward Current IF 35mA
Pulse Forwards Current*²
 IFP 100mA
Reverse Voltage
 VR
 30V
Working Temperature
 TOPR
 -30~+85℃
Storage Temperature
 TSTG
 -40~+100℃


PRODUCT PARAMETERS/TA=25℃:

Color Part number Color temp（K） CRI Ra Min I F( mA)
TEST
 Φv（l m）
Typ.
 VF( V)
Typ.
Natural white FM-SP3528WNS-460R 5600-6500 70 30 65 19.2
Neutral white
 FM-SP3528WDS-460R-R80 3700-4200 80 30 60 19.2
Warm white
 FM-SP3528WLS-460R-R80
 2800-3200
 80
 30
 58
 19.2

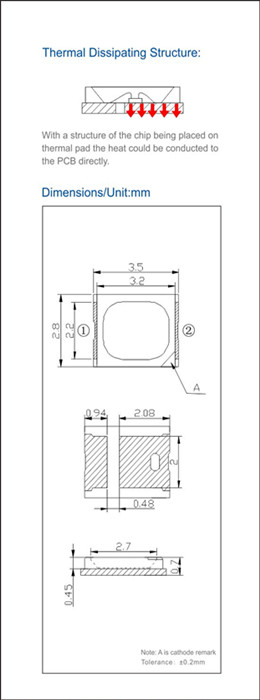

DIMENSIONS/UNIT(mm):
