Stock Code：002449
Back

2016 Series

Low Power High Luminous Efficacy

FEATURES:


• High refringence，high brightness， anti-sulfur.
•Thin encapsulation with heat sink， efficient heat dissipation.
• High luminous efficiency，high-CRI，long lifespan.
• Eco-friendly，RoHS compliant

• Rated power：0 . 2 W


ABSOLUTE MAXIMUM RATINGS:

Parameter Symbol Rating
Forward Current IF 75mA
Pulse Forwards Current*²
 IFP 200mA
Reverse Voltage
 VR
 5V
Working Temperature
 TOPR
 -30~+85℃
Storage Temperature
 TSTG
 -40~+100℃


PRODUCT PARAMETERS/TA=25℃:

Color Part number Color Temp（K） CRI Ra Min I F( mA)
TEST
 Φv（l m）
Typ.
 VF( V)
Typ.
Natural white FM-2016-WNS-460Q-R80 5600-6500 80 60 22 3.2
Neutral white
 FM-2016-WDS-460Q-R80 3700-4200 80 60 22 3.2
Warm white
 FM-2016-WLS-460Q-R80
 2800-3200
 80
 60
 20
 3.2

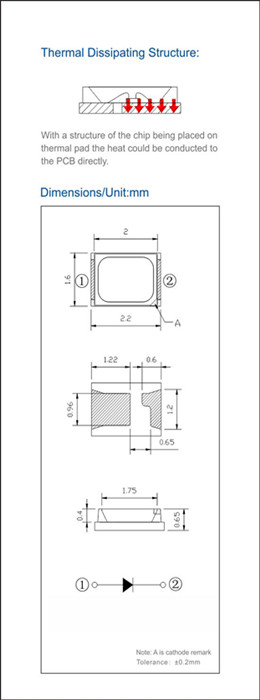

DIMENSIONS/UNIT(mm):
