EMC3030 Series

Power type EMC Package LED

FEATURES:

• Good heat resistance and UV protection.
• Great hermeticity
• High brightness high power.
• Small size，multiple application.
• Rated power：1-3W

ABSOLUTE MAXIMUM RATINGS:

Parameter	Symbol	Rating
Forward Current	IF	40mA
Pulse Forwards Current*²	IFP	1000mA
Reverse Voltage	VR	5V
Working Temperature	TOPR	-30~+85℃
Storage Temperature	TSTG	-40~+100℃

PRODUCT PARAMETERS/TA=25℃:

Color	Part number	Color Temp（K）	CRI Ra Min	I F( mA) TEST	Φv（l m） Typ.	VF( V) Typ.	I R( µA) Max*1
Natural white	FM-DE3030WNS-460W-R80	5600-6500	80	350	120	3. 2	10
Neutral white	FM-DE3030WDS-460W-R80	3700-4200	80	350	120	3. 2	10
Warm white	FM-DE3030WLS-460W-R80	2800-3200	80	350	120	3. 2	10

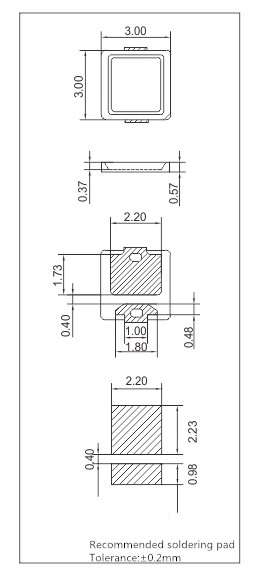

DIMENSIONS/UNIT(mm):
