P2828 series

High-conductivity metal PCB

FEATURES:

• Use aluminum PCB with high reflective material.

• Applicable to flood light，high bay light，etc.

• Rated power：38-75W.；

PRODUCT PARAMETERS/TA=25℃:

Part number	Color Temp（K）	CRI Ra Min	Φv（l m） Typ.	I F( mA) TEST	VF( V) Typ.	VF( V) Max
MC-P2828CW-38W1051208	6000	80	4800-5150	1050	32. 5-39. 5	60
MC-P2828NW-38W1051208	4000	80	4550-4900	1050	32. 5-39. 5	60
MC-P2828WW-38W1051208	3000	80	4100-4450	1050	32. 5-39. 5	60
MC-P2828CW-50W1501208	6000	80	6500-7000	1500	34. 5-42	80
MC-P2828NW-50W1501208	4000	80	6300-6800	1500	34. 5-42	80
MC-P2828WW-50W1501208	3000	80	5600-6100	1500	34. 5-42	80

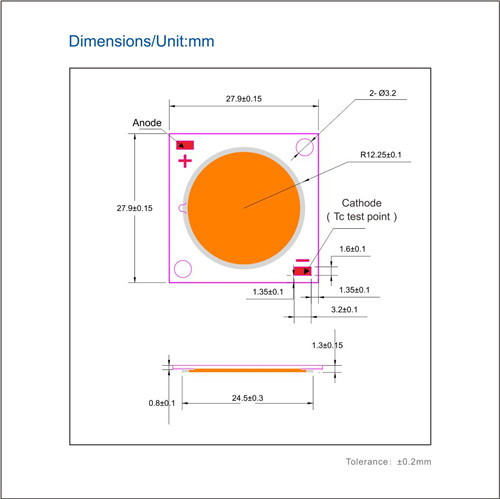

DIMENSIONS/UNIT(mm):
