P1919 series

High-conductivity metal PCB

FEATURES:

• Use aluminum PCB with reflective material.

• Applicable to flood light，spot light，etc.

•Rated power：18-35w.

PRODUCT PARAMETERS/TA=25℃:

Part number	Color Temp（K）	CRI Ra Min	Φv（l m） Typ.	I F( mA) TEST	VF( V) Typ.	VF( V) Max
MC-P1919CW-25W0701206	5700	80	3100-3300	700	32. 5-39. 5	44
MC-P1919NW-25W0701206	4000	80	2950-3300	700	32. 5-39. 5	44
MC-P1919WW-25W0701206	3000	80	2800-3100	700	32. 5-39. 5	44
MC-P1919CW-30W0701406	5700	80	3450-3850	700	38-46	52
MC-P1919NW-30W0701406	4000	80	3400-3750	700	38-46	52
MC-P1919WW-30W0701406	3000	80	3050-3350	700	38-46	52

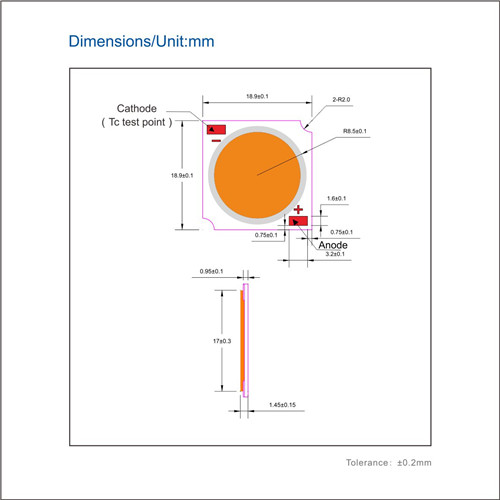

DIMENSIONS/UNIT(mm):
