H215 series

Aluminum PCB COB

FEATURES:

· The chip is directly placed on aluminum PCB.

·Universal dimension，cost-effective.

·Applicable to downlight，spot light， street light etc.

·Rated power：3-7w.

PRODUCT PARAMETERS/TA=25℃:

Part number	Color Temp（K）	CRI Ra Min	Φv（l m） Typ.	IF TEST(mA)	Voltage（V）	Max power （W）
MC-H1215CW-3W0350302	6500	80	340-380	350	8. 5-10. 5	4
MC-H1215NW-3W0350302	4000	80	340-370	350	8. 5-10. 5	4
MC-H1215WW-3W0350302	3000	80	340-335	350	8. 5-10. 5	4
MC-H1215CW-5W0350502	6500	80	570-630	350	14. 5-17. 5	6.5
MC-H1215NW-5W0350502	4000	80	550-610	350	14. 5-17. 5	6.5
MC-H1215WW-5W0350502	3000	80	520-580	350	14. 5-17. 5	6.5
MC-H1215CW-7W0151201	6500	80	600-660	150	34. 5-42	8
MC-H1215NW-7W0151201	4000	80	565-625	150	34. 5-42	8
MC-H1215WW-7W0151201	13000	80	530-590	150	34. 5-42	8

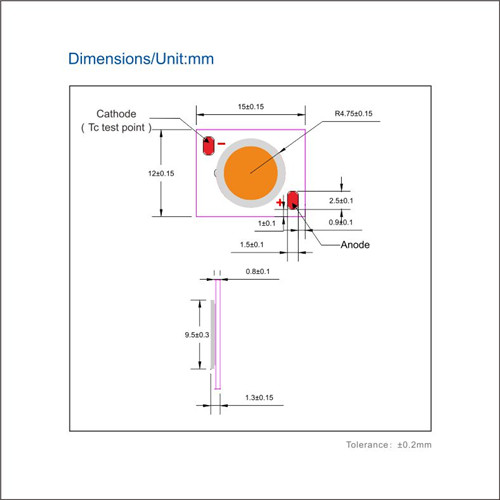

DIMENSIONS/UNIT(mm):
